• Wheels 16" x 6.5" (40.6 cm x 16.5 cm) steel (Only available with (R04) single rear wheel configuration.)
• Tires, front LT245/75R16E all-season, blackwall (Included and only available with CG33503 or CG33803 and (C4M) 9900 lbs. (4490 kg.) GVWR or (JFF) 10,100 lbs. (4581 kg.) GVWR. Jack and spare tire equipment bracket are not included.)
• Tires, rear LT245/75R16E all-season, blackwall (Included and only available with CG33503 or CG33803 and (C4M) 9900 lbs. (4490 kg.) GVWR or (JFF) 10,100 lbs. (4581 kg.) GVWR. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, single (Standard on CG33503 model. Available on CG33803 model. Not available with (9N2) 10,050 lbs. (4559 kg.) or (C7N) 12,300 lbs. (5579 kg.) GVWR.)
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Appearance Package or (YF1) RV Package is ordered.)

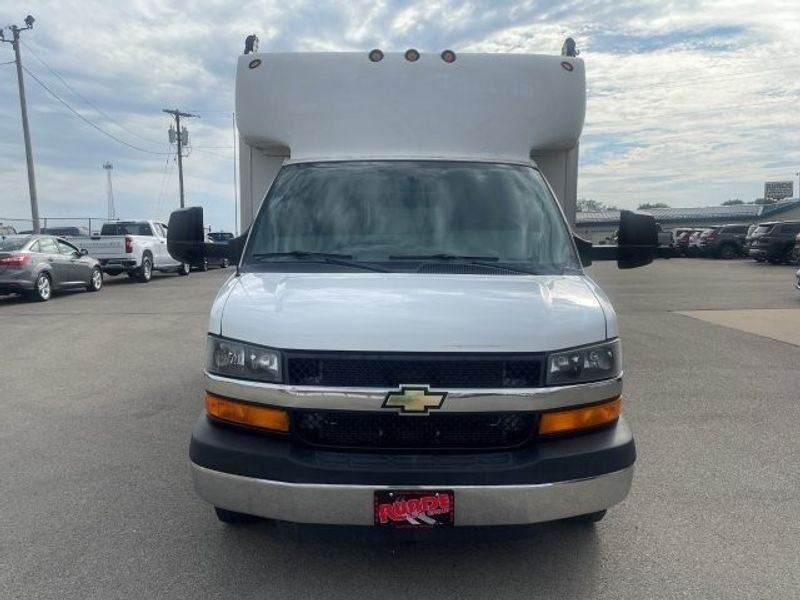

• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (U0F) AM/FM stereo with MP3 player, (U0H) AM/FM stereo with MP3 player and USB port, (US8) AM/FM stereo with CD/MP3 player, (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UL5) radio delete.)

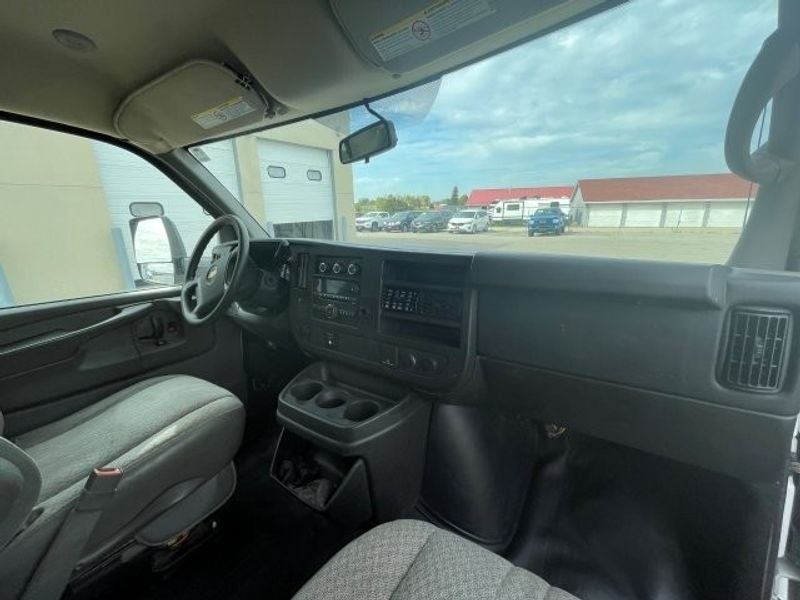

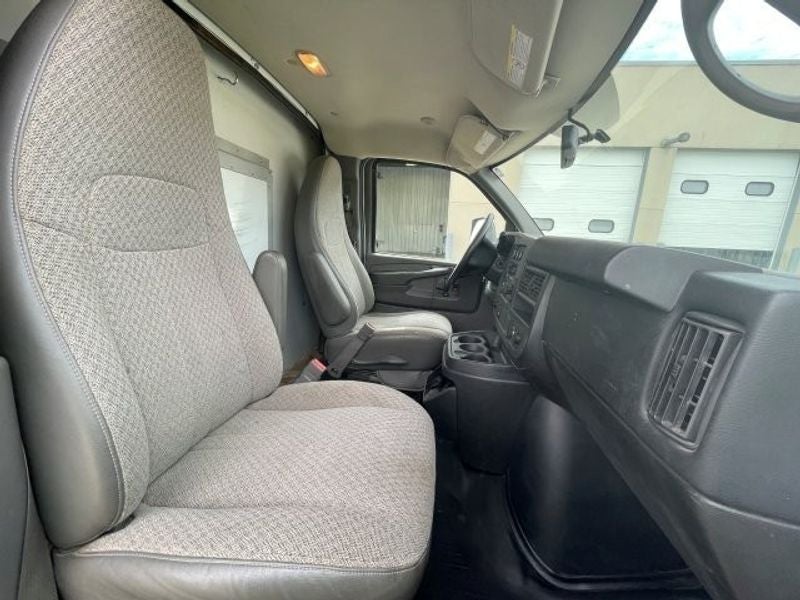

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)

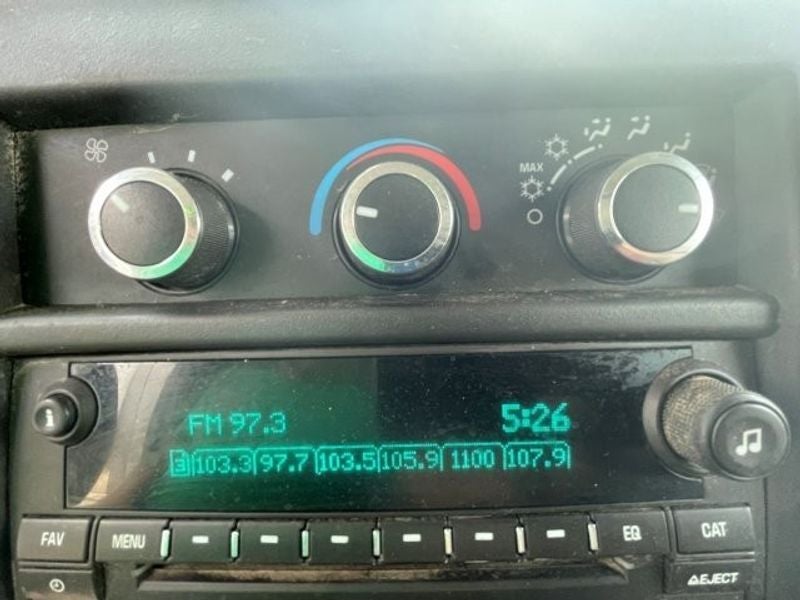

• Air conditioning, single-zone manual
• Seats, front bucket with vinyl trim and outboard head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats.)
• Power outlet, 120-volt
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Heater and defogger with front and side window defoggers
• Defogger, side windows
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with dome light and door handle-activated switches

• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Not available with CG33803 models or CG33903 models.)

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.

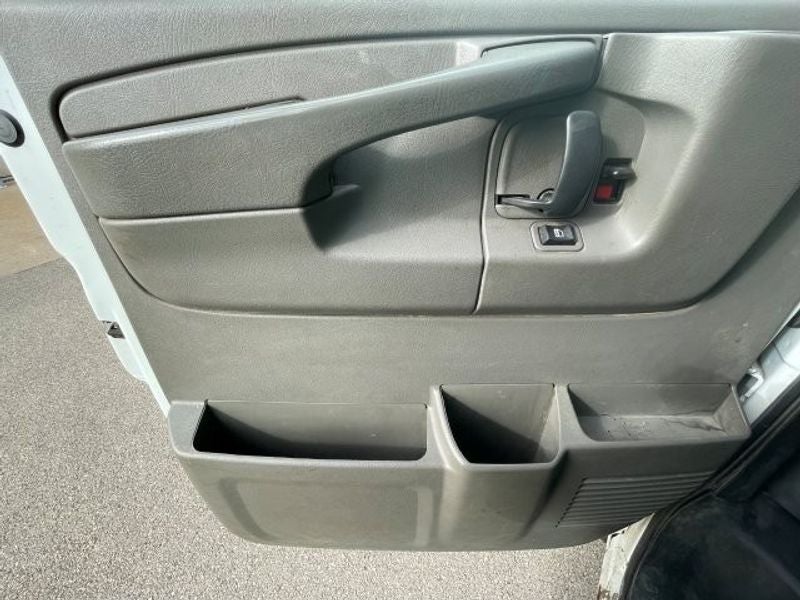

CONVENIENCE PACKAGE, POWER WINDOWS AND DOOR LOCKS

• (Includes (A31) power windows and (AU3) power door locks.

1WT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

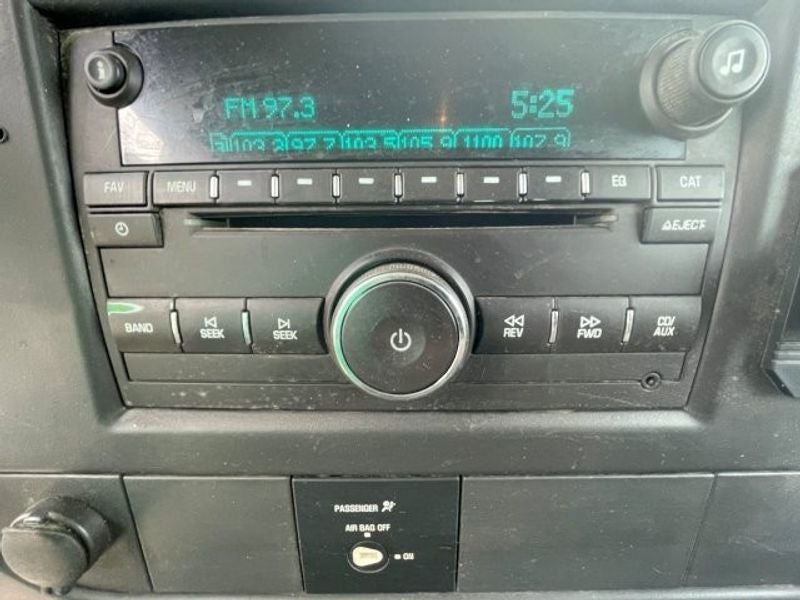

AUDIO SYSTEM, AM/FM STEREO WITH CD/MP3 PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• auxiliary jacks and 2 front door speakers

DOOR LOCKS, POWER

• with lock-out protection

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

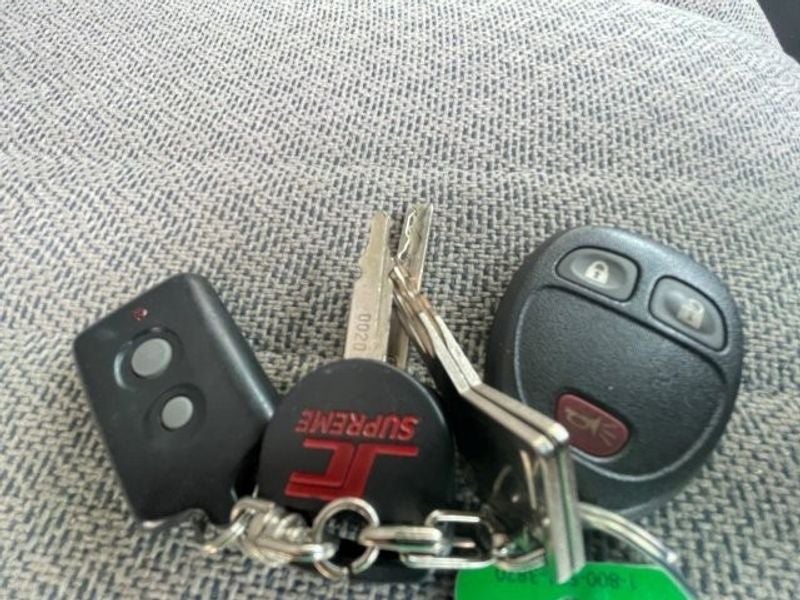

REMOTE KEYLESS ENTRY

• with 2 transmitters and remote panic button

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

• Chrome Appearance Package: Chrome Grille; Front Chrome Bumper with Step-Pad
• Power Convenience Package: Power Windows; Power Door Locks
• Convenience Package: Tilt-Wheel; Cruise Control
• Preferred Equipment Group 1WT
• 12
• 300 lbs (5
• 579 Kgs) GVWR
• Heavy-Duty Rear Locking Differential
• AM/FM Stereo with CD/MP3 Player
• Power Door Locks
• Wide-Stance Sail Panel Mounted Outside Mirrors
• Remote Keyless Entry
• Front Chrome Bumper with Step-Pad
• Body Soft-Mount Donut and Bolt
• Reclining High-Back Bucket Seats with Inboard Armrests
• SEO: 3-Gallons Additional Fuel
• Manual Day/night Inside Rearview Mirror
• Cruise control with steering wheel mounted controls
• 16 x 6.5-inch front and dual rear gray steel wheels
• Vortec 6L V-8 variable valve control
• regular unleaded
• engine with 342HP
• Immobilizer
• External memory control
• Manual tilting steering wheel
• Wheel hub covers
• Dual rear wheels
• LT225/75SR16 AS BSW front and rear tires
• Cloth front seat upholstery
• 2 airbags
• Driver front impact airbag
• Cancellable front passenger air bag
• Airbag occupancy sensor
• Auto-locking doors
• 6-speed automatic
• Selectable mode transmission
• Manual climate control
• Transmission electronic control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Daytime running lights
• Delay-off headlights
• Bucket front seats
• Driver seat with 4-way directional controls
• Front passenger seat armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Rear-wheel drive
• Seating capacity: 2
• Front beverage holders
• Basic warranty: 36 month/36
• 000 miles
• AM/FM
• Analog instrumentation display
• Powertrain warranty: 60 month/100
• 000 miles
• Lock-up transmission
• Day/Night rearview mirror
• Driver seat manual reclining and fore/aft control
• Passenger seat manual reclining and fore/aft control
• Driver and passenger convex spotter mirrors
• Trip computer
• Corrosion perforation warranty: 72 month/100
• 000 miles
• Cloth front seatback upholstery
• Front mounted engine
• Spark ignition system
• Longitudinal mounted engine
• Iron engine block

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3085
• Curb Weight - Front (lbs): 2993
• Curb Weight - Rear (lbs): 1887
• Curb Weight - Rear (lbs): 1504
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): - TBD -
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): - TBD -
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 139.00
• Length, Overall w/o rear bumper (in): 246.70
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 80.00
• Cab to End of Frame (in): 148.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 6.80
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

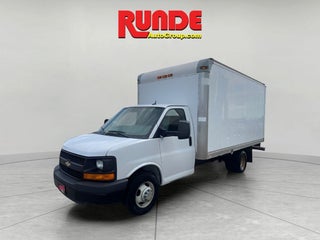

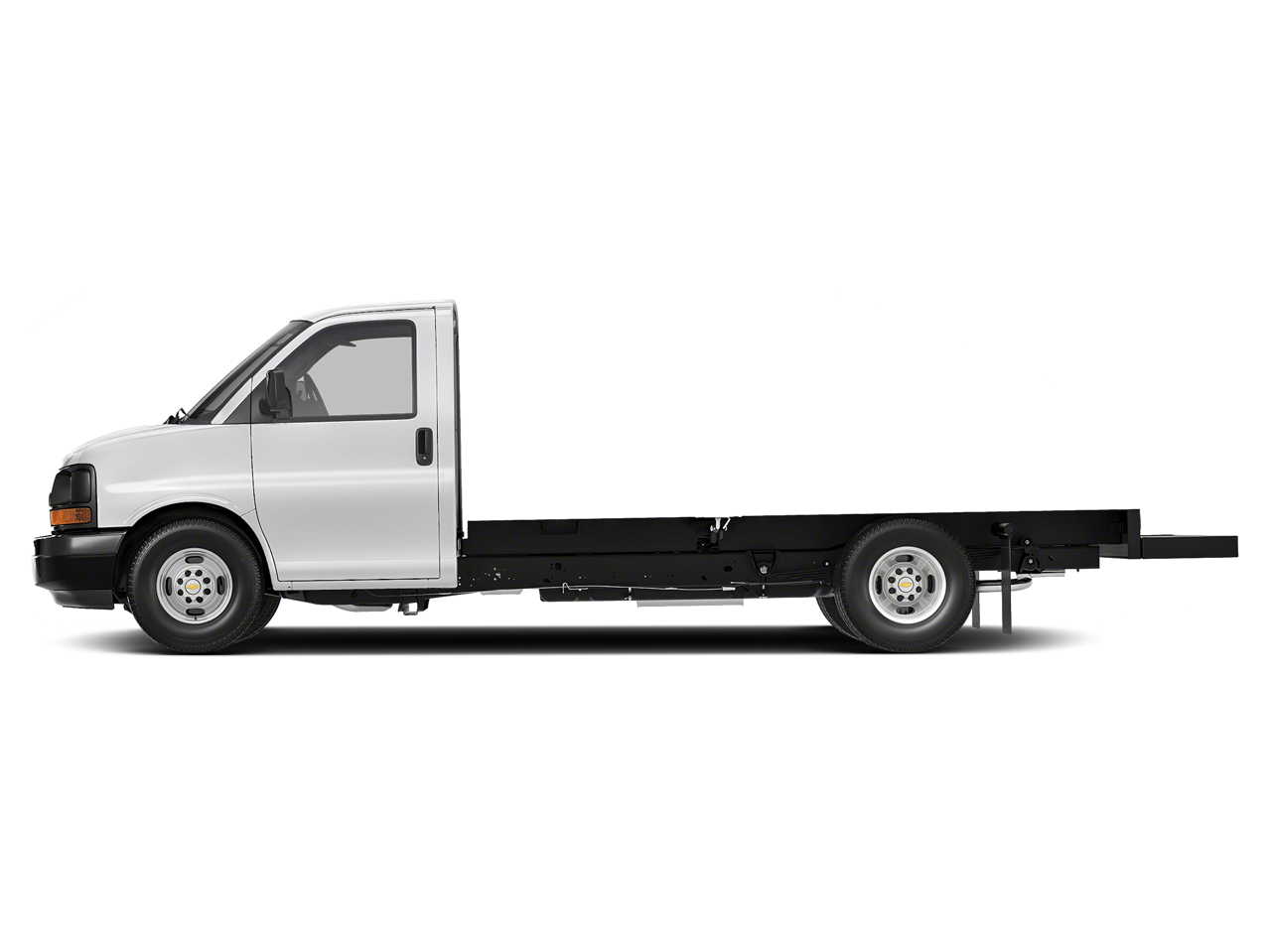

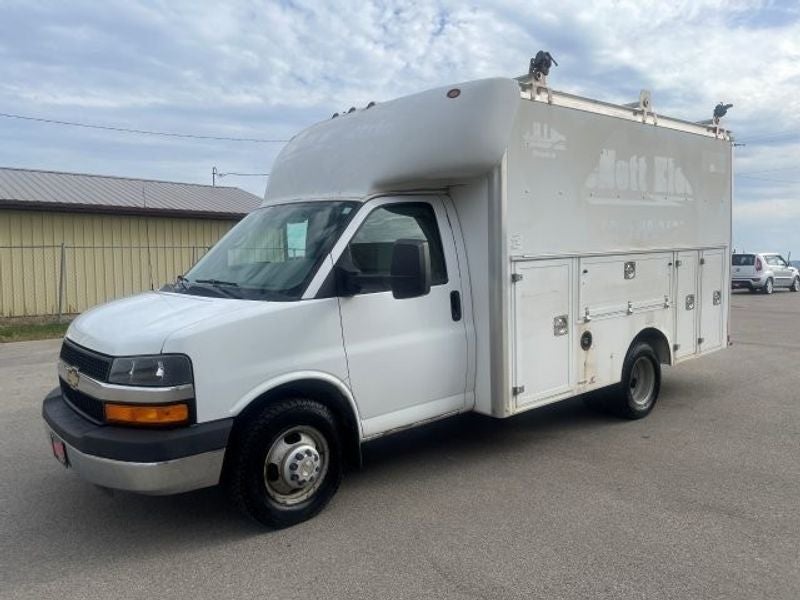

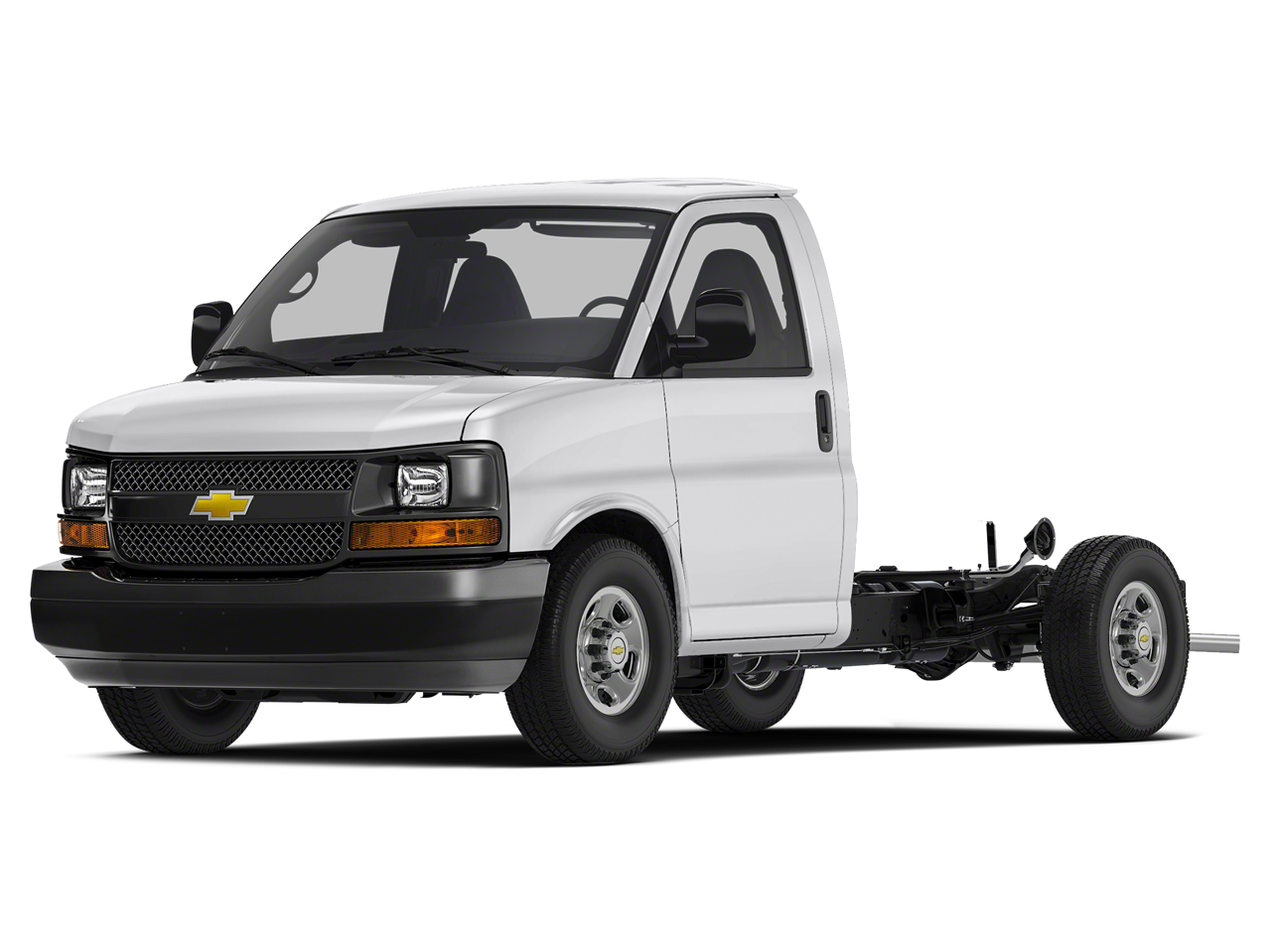

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 139.0" WB
• Body Code: ZW9
